Indicador remoto electrónico de nivel de aceite Qualitrol 039

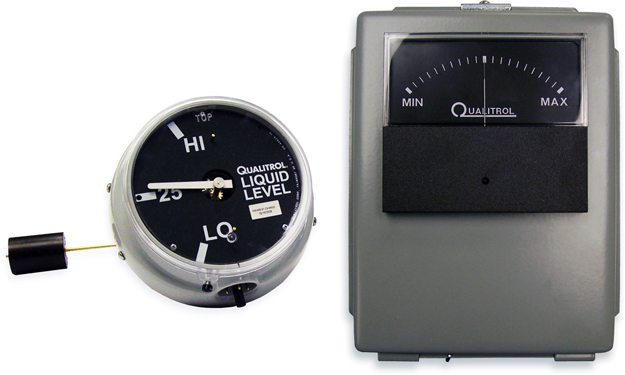

El medidor de nivel de lectura local y un módulo remoto electrónico ofrecen una indicación continua del nivel de líquido del tanque principal del transformador, del tanque conservador o del compartimento del cambiador de tomas con voltaje. Proporciona una salida variable resistente al módulo remoto para monitoreo continuo. El módulo remoto tiene ajustes de compensación y separación de ganancia alta y baja para permitir una coincidencia exacta con el medidor de nivel de lectura local.
Features
- Up to 2 switches (contacts) for control and alarm functions
- 0-1 or 4-20 mA continuous remote output for integration into SCADA systems
- El montaje del sensor de la caja (con carátula) está diseñado para su uso con estilos de brida del indicador de nivel de aceite 032/042 Qualitrol para aplicaciones de fácil retroadaptación.
- Provides accurate indication of oil level in transformer tank or components
- Magnetically coupled level gauge is mounted on operating equipment while the remote indicator can be placed in a safer, more convenient location
- Carátula de indicador remoto de fácil lectura estilo "mín-máx". También hay disponibles carátulas especiales impresas
- Local indicator has switches for alarm triggering or controlling other auxiliary equipment
- Die cast aluminum casing is finished with a thermosetting powder coat
- Dial on the local indicator is magnetically coupled to the flange for easy replacement if damaged
- UV stabilized polycarbonate lens does not yellow with age
- Remote indicator available with a NEMA 3R enclosure for extra protection from the environment
Options
- 3 oil level indicator model for consolidation of 3 indications into one robust IP54 enclosure
- Float travel ranges from min to max markings for various tank configurations
- Tank connection (flange) style, materials, dial style and dial layout
- Heater for enclosure
- Up to 2 switches
Applications
For continuous oil level indication with integrated control and alarm functions. Designed for use where the point of measurement is not easily viewed by personnel requiring separate or remote indication.
