Iris Power EL CID™ Evolution – Low-flux Core Test Instrument

Offline Low Power Testing of Stator Core Inter-Laminar Insulation

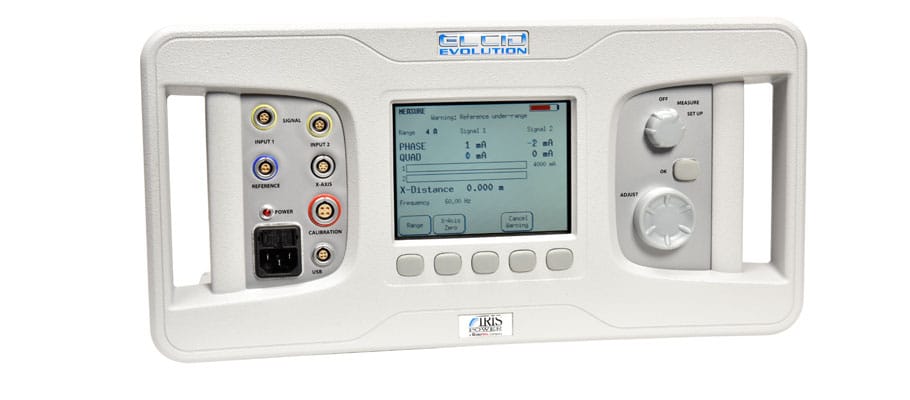

The EL CID™ Low Power Core Tester provides offline testing of inter-laminar insulation breakdown within a stator core. The only alternative to the Iris Power EL CID™ Evolution Low-Flux Core Test is the Ring Flux (full flux) test which requires large power supplies, considerable manpower, and expensive infrared viewing cameras.

Motor
Generador hidráulico
Generador de turbina
Funciona con estos activos

Features



  • Only one technician is needed to perform the low-flux core test using the EL CID™ Evolution tester
  • Safe for core and operator, unlike Ring Flux test which is potentially damaging to the unventilated core
  • Iris Power EL CID™ Evolution Low-Flux Core Tester instrument comes with an excitation kit to conduct the test at only 4% of normal operating flux.
  • Measurement results are digitally stored in the PC for analysis and automatic report generation.
  • Any imperfections in the core inter-laminar insulation produce fault currents which are detected by a Chattock coil and analyzed by the Iris Power ELAN software.
  • Future results can be compared to past results for trend analysis.

Ventajas

  • Tests are repeatable
  •  Los resultados inmediatos de las pruebas están disponibles para análisis local y correo electrónico
  •  Determina si los defectos se encuentran en la superficie, sub-superficie o debajo de los conductores
  •  Pruebas con o sin devanados
  •  Más sensible en la detección de fallas enterradas
  •  Las repeticiones de pruebas parciales del núcleo son posibles con la habilidad de fusionar los resultados para obtener una imagen completa del estado del núcleo.
  •  Trending of previous results
  •  Excellent quality assurance test

Grupo Created with Sketch. Kit contents

  • EL CID™ Evolution Low-Flux Core Test Instrument
  • Sensores Chattock (10, 20, 25 y 30 cm)
  •  Sensor de referencia
  •  Carro de empuje magnético
  •  Escalera rodante de hierro
  •  Unidad de calibración
  •  Switched Turbo Excitation System including 30 m of excitation cables
  •  Voltímetro y amperímetro de sujeción
  •  ELAN CD con Licencia de Software
  •  Manual

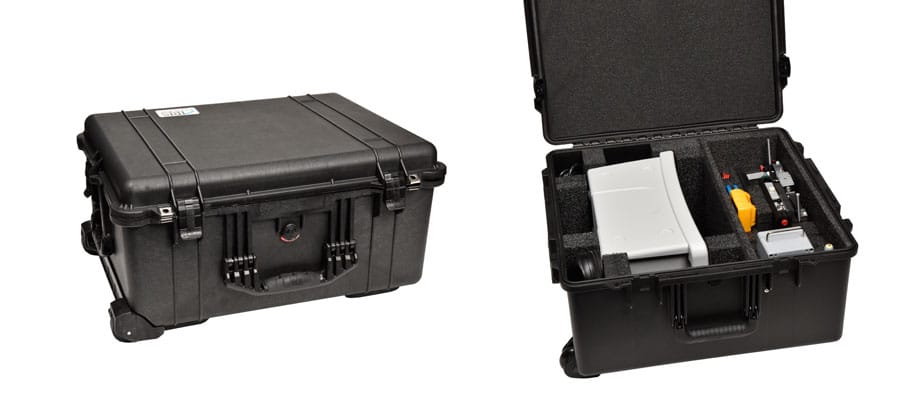

  •  Two Wheeled Transit Cases
