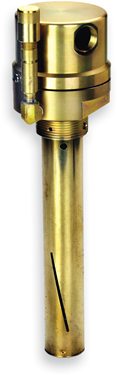

Interruptor del indicador vertical de nivel de aceite Qualitrol 049
Provides continuous indication of the liquid level within an oil filled transformer’s main tank, conservator tank or load tap changer compartment. Integrated switches allow limit and alarm functions.
Features
- UL and CSA approved switch
- Magnetically coupled for leak free operation
- Permanent internal waterproof seal for leak protection with protective display cover
- Float and indication assemblies are magnetically coupled for easy replacement of indicator if damaged
- Vented enclosure meets IP54 requirements
- Integrated snap switch allows for setting an alarm signaling specified oil level
- Single pole double throw switch is UL and CSA approved
- Kit consists of a manifold with shut-offs, a vacuum pump, a stopcock with tubing and a wrench to access the port on the 049
Options
- Switch setting
- Float travel ranges for various tank configurations
El kit opcional permite la toma de muestras de gas para el análisis:
- KIT-008-1 gas sampling kit is available to easily obtain samples for analysis
Applications
Para funciones de control o alarma en según el nivel de aceite o líquido. Se utiliza principalmente en transformadores herméticos, cambiadores de tomas con voltaje, tanques conservadores y otros aparatos relacionados donde no sea necesaria ninguna indicación local y una solución montada en la parte superior sea más conveniente y accesible.
